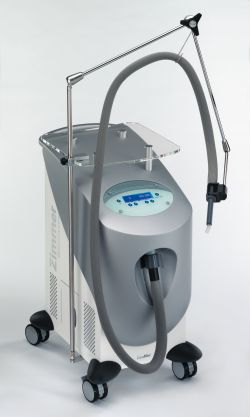

Articulating Arm

A handy optional articulating arm is available for your Zimmer Cryo Mini.  The articulating arm gives the hose gentle support and allows the practitioner to perform hands-free operation. Immediate cold air relief begins for the patient when you position the articulating arm over the treatment area and press start.

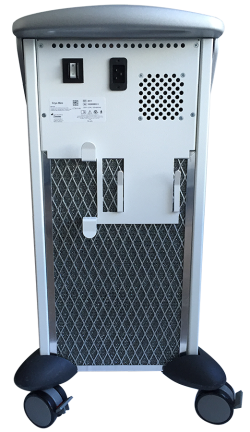

Easy Maintenance

Easy once-a-week maintenance! Simply vacuum the air filter (without removing) and empty the condensation. That’s it! The Cryo Mini chiller unit automatically performs additional self-maintenance & operational component checks every time it is powered on.

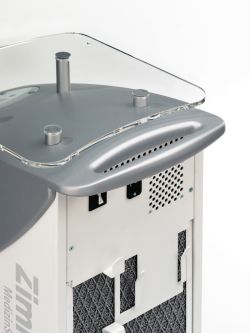

Plexiglas Top Platform

Handy shelving right where you need it – and when you need it! The Cryo Mini flat Plexiglas top provides easy access during procedures to additional small therapy devices or accessories!

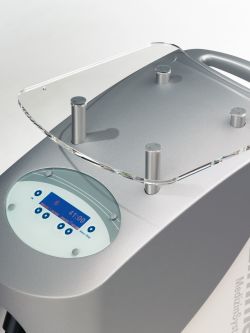

Control Panel

The best of technology is provided in a large, clear LCD display and ergonomically designed touch keypad. The display presents clear-cut and easy-to-read treatment parameters. At the push of a button, the practitioner can easily change the therapy fan speed, adjust the treatment time and power the Cryo Mini device on or off.

Cryo Mini Hose

The Cryo Mini lightweight treatment hose is 6 feet long. This treatment tube conveys cold air to the treatment site. A focusing tip can be connected to the end of the hose to provide more specific and targeted cooling to smaller or precise areas.

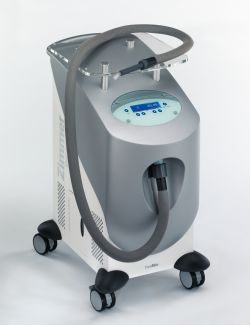

Compact & Portable

The Cryo Mini chiller model is a lower capacity, more compact device than the Cryo 6. It is ideal for smaller treatment rooms.  The unit is lighter than the Cryo 6 and is very easy to transport when needed.  The handy custom designed Plexiglas top, hands-free operation, 9 speed fan, lightweight treatment hose and easy maintenance combine to provide the ultimate in convenience and control for practitioners.

Picture Gallery


*Cryo device may be shown on this page with optional Articulating Arm.

Videos

Technical data

Delivers Cold Air Down To
-10°C

Power Supply
120 V / 50-60 Hz

Max. Power Consumption During Therapy
1 KW

Standby-Mode
100 W/h

Cooling Duration
Short Term

Plexiglas Top

Treatment Hose Length
6 ft.

Housing Dimensions
H 25″ / W 13″ / L 23″

Weight
75 lbs.

Cooling Fans
9 levels, ~ 1300l / min

Device Class
EN 60601-1 I, Type B
MDD / MPG Class IIa

Limited 1 Year Warranty
